Merlin PLUS compatible remote handset 434MHz

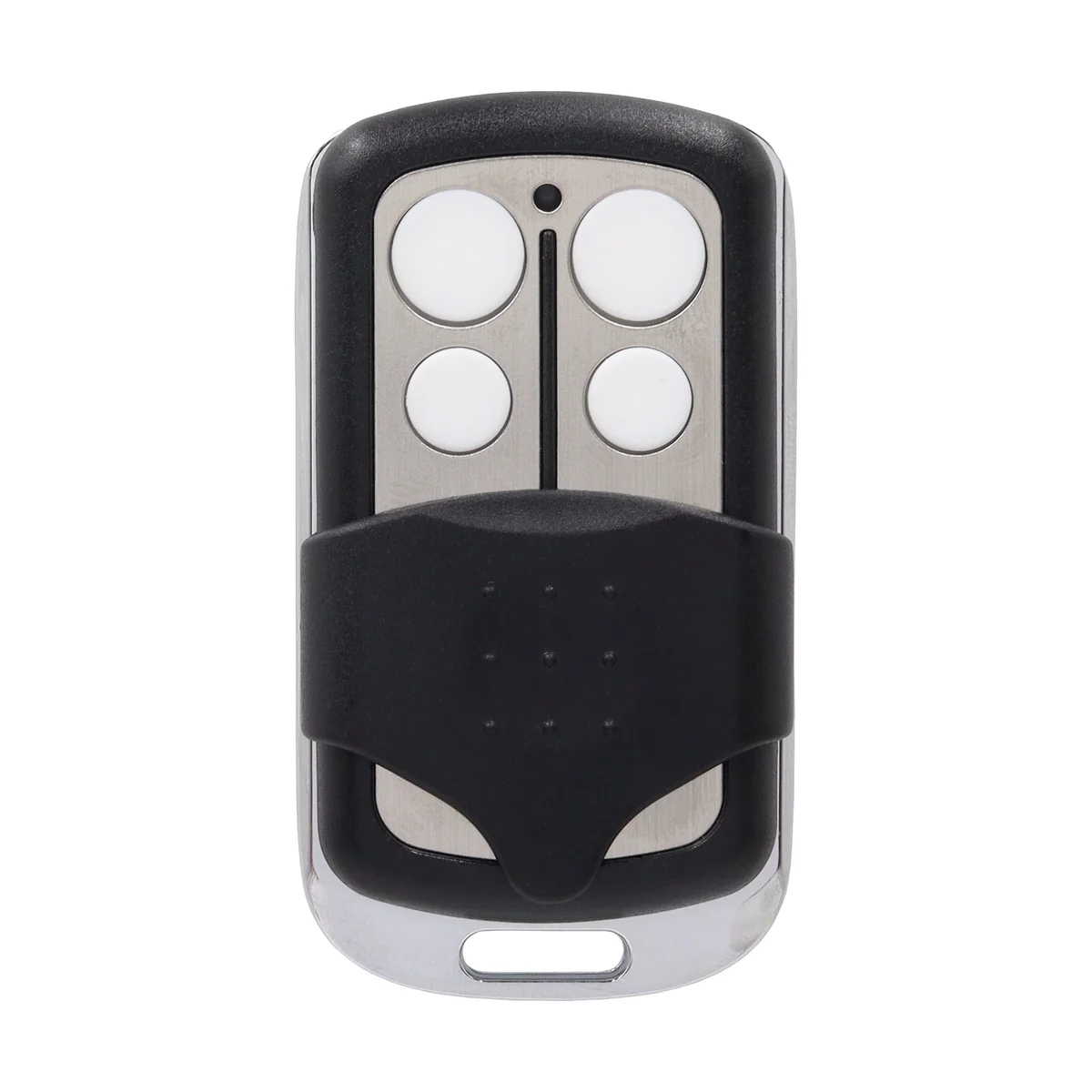

The Merlin PLUS compatible remote handset is a four button aftermarket unit on 434 MHz, made by The Key Guys to replace their KGMPR02. Before you order, take the remote you already have and look at the label on it. It should read KGMPR02, it should look identical to the one pictured, and the button colours should match. All three true means this is your replacement.
Buy the Merlin PLUS compatible remote handset 434MHz
In stock, dispatched the same or next business day
Before you order
Before ordering, check your existing remote looks identical, has matching button colours and is labelled KGMPR02.
Standard tracked shipping $12.00 in 2 to 6 business days, express $15.00 in 1 to 3 business days. Not sure this is the right part? Send a photograph of the front and back of your existing unit to service@allgate.com.au and we will confirm it before you buy.
About the Merlin PLUS compatible remote handset 434MHz
That label matters more here than on almost anything else we stock, because we carry a second Key Guys Merlin handset that is the same size, the same shape, the same price and the same four buttons on the same frequency. The other one is the Merlin compatible remote handset 434MHz (The Key Guys), and it is labelled KGMR01. The two are not interchangeable. Nothing about holding one in your hand tells you which of the two you need. The printing on the case does, and it is usually on the back.
The two exist because Merlin equipment divides into the earlier Merlin range and the later Merlin PLUS range. This one is the PLUS handset, and it codes into the Merlin PLUS motors in the MT and MR series. On the tilt and sectional side that is the MT range, taking in units such as the MT60 and MT60P, the MT230, the MT600, the MT800, the MT1000, the MT3850 and the MT5580. On the roller door side it is the MR range, including the MR600 and MR600A, the MR650, the MR800 and MR800A, the MR850 and the MR1000. If your opener or your existing remote belongs to the earlier range instead, the KGMR01 is the one to order.
There is a boundary at the top of that range as well as the bottom, and it is the one people fall over. Merlin PLUS is not Merlin+ 2.0, and it is not the EVO generation that followed. If the remote you are replacing has Merlin+2.0 printed on the front, or your motor carries an EVO suffix such as MT60EVO or MR850EVO, this handset sits on the wrong side of the line and our genuine Merlin+ 2.0 listings are where to look instead. Being one generation out is by far the most common reason a Merlin remote arrives and will not code.
A useful shortcut if the paperwork is long gone. The motor model is normally printed on a label on the head unit, the part hanging from the garage ceiling or sitting beside the roller door drum, and it can be read from the floor with a phone camera and a bit of zoom. Two letters and a number is all you need.
Four independently coded buttons mean it can run up to four doors or gates, which suits a house with a garage and a separate driveway gate, or a household sharing one handset across two roller doors.
The battery is a 27A cell, fitted before it leaves our Sydney warehouse, and the compartment needs a tool to open rather than a thumbnail. The 27A is cylindrical, roughly the size of a small fuse, so it is not covered by the coin battery rules and is easy to find when it eventually goes flat.
This is an aftermarket remote. It is not manufactured, authorised, endorsed or approved by Merlin.
If the label on your old remote has worn away, or there never was one, photograph the front and the back of the handset and send it to service@allgate.com.au. Telling a KGMPR02 from a KGMR01 by eye is not reliable, and we would much rather look at a photograph than have you guess between two remotes that cost the same and do not do the same job.
Product details
- Brand
- Merlin
- Type
- Compatible aftermarket part
- Category
- Remote controls
- Frequency
- 434 MHz
- Battery
- 27A
- Allgate stock code
- AG_KGMPR02
Battery safety
This product is supplied with a 27A battery, which is not a coin battery. Keep new and used batteries out of reach of children, and dispose of used batteries safely. A flat battery can still cause harm.
Delivery, returns and fitting
Shipping costs and delivery times are shown beside the Add to cart button above. Unused parts can be returned by post within 30 days of purchase for a full refund, with return postage paid by you. Your rights under the Australian Consumer Law apply on top of that, so if the part you receive turns out not to suit your opener, call us before you program it and we will work out what does. Our full terms of sale are set out on the Allgate terms and conditions page.
Most customers fit and code a new part themselves in a few minutes using the instructions supplied. If you would rather have it done, an Allgate technician can program and test it on site anywhere we work, which is every suburb listed on the Sydney service areas page.
Not sure the Merlin PLUS compatible remote handset 434MHz is the right part?
Buying the wrong remote is the most common mistake we see, and it is almost always avoidable with one photograph. Send a clear shot of the front and the back of your existing unit, plus one of the motor if you can reach it safely, to service@allgate.com.au and our team will tell you exactly which part suits your opener. If you would rather talk it through, our domestic line is 1300 736 683, Monday to Friday 8am to 4pm. Commercial and strata customers can reach a technician on 1300 655 600 at any hour, on any day.
You can also search the catalogue by the model number printed on your existing handset, which is the fastest way to find the match yourself.
