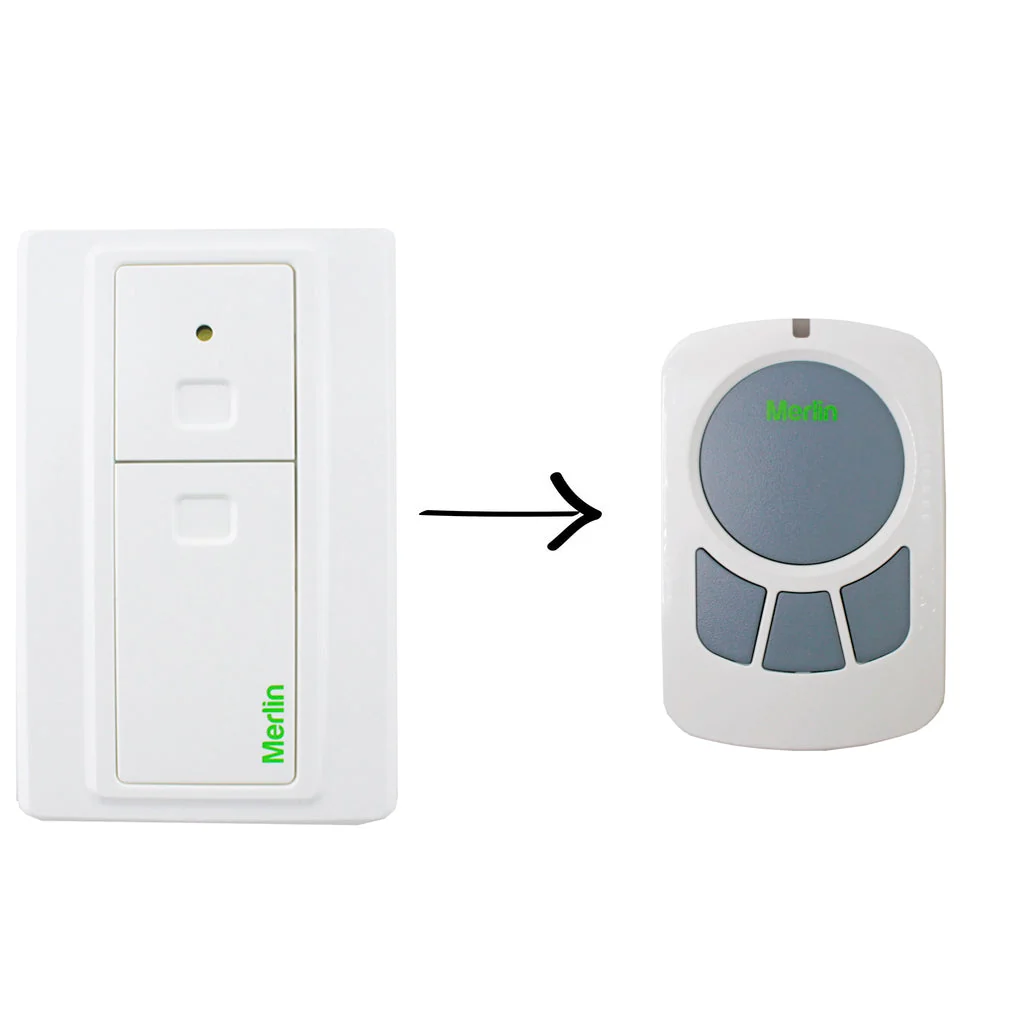

Merlin+ 2.0 E138M Genuine Wall Button

About the Merlin+ 2.0 E138M Genuine Wall Button

Those three numbers decide more about this purchase than the radio does, so they are worth taking seriously before anything is unscrewed.

It mounts portrait, being half again as long as it is wide. An older plate that sat landscape, or a larger unit from another brand, will leave a paint shadow and a pair of redundant holes that this one does not cover. On painted plasterboard that matters. On a brick garage wall it usually does not, because the new holes are drilled fresh in any case.

The depth is the number people are caught by. At 1.5 cm the plate stands off the wall by about the thickness of a light switch, which is enough to stop a door that used to open flat back against that wall. Check the swing of every door near the spot you have in mind before the drill comes out.

Height is the last of the three. Installers tend to mount at their own reach, which is higher than the shortest adult in the household will thank them for, and lower than a small child cannot get to. Somewhere around shoulder height for the shortest regular user is the compromise most families settle on. Leave a screwdriver's clearance beneath it as well, because the battery cover is retained by a screw rather than a clip.

By marketing name it suits the Rollerlift and the HandyLift Plus 2.0, the Powerlift and Powerlift Plus, the Weatherdrive, the Silent Drive, the Quietdrive Pro and the Silentdrive Essential, Pro and Elite, the Overdrive, the Tiltmaster, the CyclonePro, the Whisperdrive, the EntryLift and the Powerace, along with the Commander Essential, Elite, Extreme, Ultimate and myQ units and the Steel-Line ST50EVOB, ST50EVOB1 and ST50EVOC. In part codes those are the CR625EVO, CR655MYQ, CS60EVO, CS100EVO, MJ3800MYQ, MR550EVO, MR650EVO, MR655EVO, MR655MYQ, MR850EVO, MR855EVO, MR855MYQ, MRC950EVO, MS65MYQ, MS105MYQ, MS125MYQ, MT50EVO, MT60EVO, MT100EVO, MT110MYQ, MT120EVOPS and MT3850EVO. It codes alongside the E943, E945 and E950M handsets.

A CR2032 arrives fitted under a tool retained cover, with screws and instructions. The code rolls on each press.

Measure the old plate before you take it off the wall rather than afterwards. Width and length can be worked around with a wipe of filler and a touch of paint. Depth cannot, and a door that no longer opens fully is the one mistake here that is discovered after the holes are made.

Product details

Brand

Merlin

Type

Genuine part

Category

Wall buttons

Battery

CR2032 3V

Allgate stock code

AG_E148M-003

Warning: contains a coin battery

Coin batteries are dangerous. A swallowed or inserted coin battery can cause serious injury or death within two hours.

This product is supplied with a CR2032 3V coin battery.

• Keep new and used batteries out of reach of children at all times
• Do not use this product if the battery compartment does not close securely. Stop using it and keep it away from children
• Dispose of used batteries immediately and safely. A flat battery is still dangerous
• Never swallow a battery or place one inside any part of the body. It can cause severe internal chemical burns

If you think a battery has been swallowed or placed inside any part of the body, seek immediate medical attention. Call the Poisons Information Centre on 13 11 26 or go straight to your nearest hospital emergency department.

Delivery, returns and fitting

Shipping costs and delivery times are shown beside the Add to cart button above. Unused parts can be returned by post within 30 days of purchase for a full refund, with return postage paid by you. Your rights under the Australian Consumer Law apply on top of that, so if the part you receive turns out not to suit your opener, call us before you program it and we will work out what does. Our full terms of sale are set out on the Allgate terms and conditions page.

Most customers fit and code a new part themselves in a few minutes using the instructions supplied. If you would rather have it done, an Allgate technician can program and test it on site anywhere we work, which is every suburb listed on the Sydney service areas page.

Not sure the Merlin+ 2.0 E138M Genuine Wall Button is the right part?

Buying the wrong remote is the most common mistake we see, and it is almost always avoidable with one photograph. Send a clear shot of the front and the back of your existing unit, plus one of the motor if you can reach it safely, to service@allgate.com.au and our team will tell you exactly which part suits your opener. If you would rather talk it through, our domestic line is 1300 736 683, Monday to Friday 8am to 4pm. Commercial and strata customers can reach a technician on 1300 655 600 at any hour, on any day.

You can also search the catalogue by the model number printed on your existing handset, which is the fastest way to find the match yourself.
