ATA TX Compatible Remote

About the ATA TX Compatible Remote

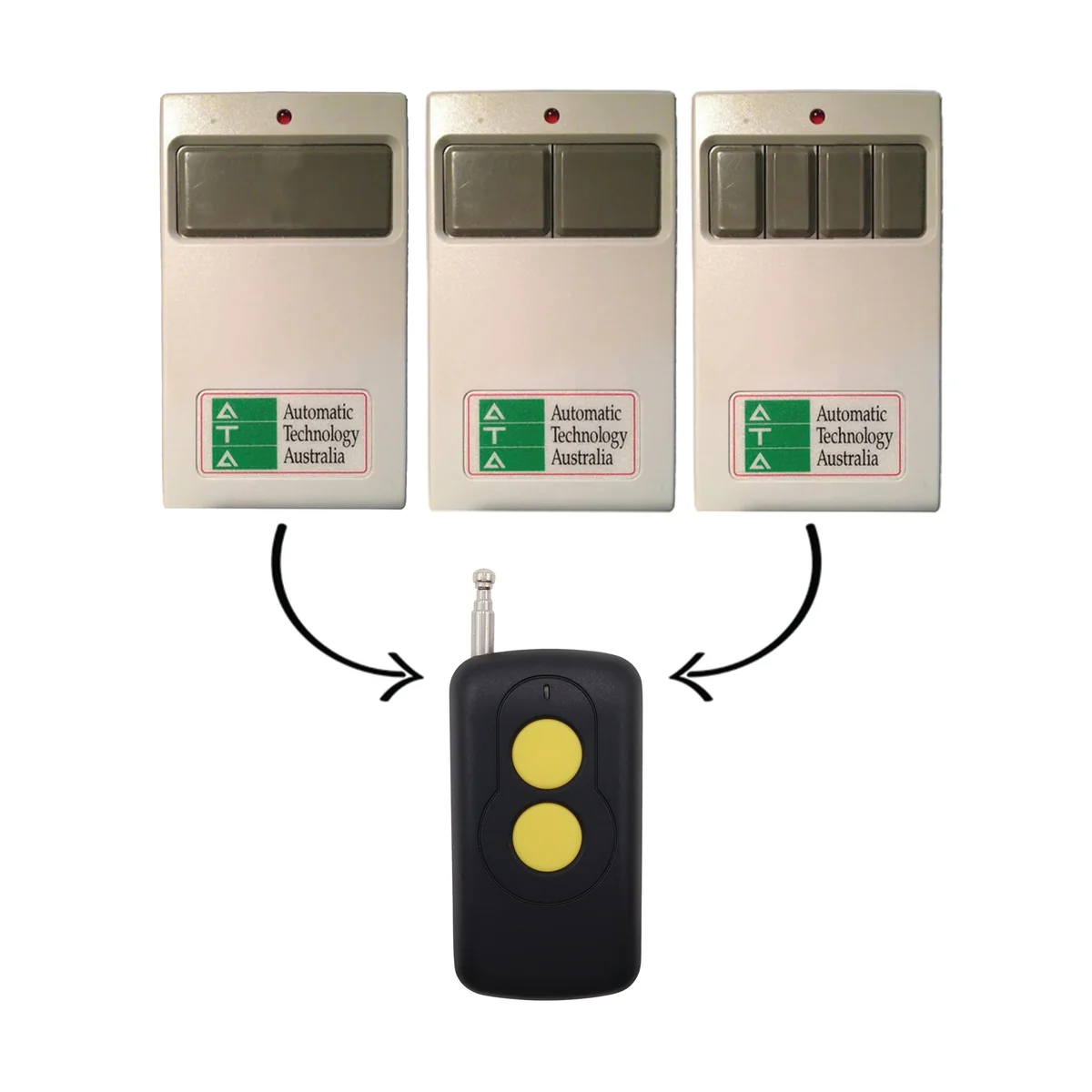

Two checks tell you whether this is the right remote for your opener. The first is the remote you already have: it needs to match the unit shown in the product photograph, because the 27 MHz remotes of this era were sold in several shapes and only one of them is this part. The second is the motor itself. Open the cover on the opener and look for a bank of twelve tiny switches on the circuit board. Twelve switches means you are on the right system. A motor with no switches at all, or with a learn or code button instead, is a later generation and needs a different remote. If you are not sure what you are looking at, photograph the motor and the back of your old remote and call us on 1300 736 683 and we will tell you which one you need before you spend anything.

Those twelve switches are the whole coding system, and understanding them is what makes this remote easy to live with. Each switch is set up, down or in some cases left in the middle, and that pattern is the code. The identical pattern is set inside the motor. To program a new remote you copy the pattern across so the two match. There is nothing to pair, no sequence of button presses to get right, and no time limit to beat while standing on a ladder.

This matters most if you have lost every remote you own. A duplicator remote is useless in that situation, because it works by copying the signal from a remote you still have. A switch coded remote is not, because the code is not stored only in the handset. It is sitting in plain sight inside the motor, and it can be read off the board and copied onto the new remote. So long as somebody can safely reach the opener and read the switch positions, a lost set of remotes is a recoverable situation rather than a call out and a new receiver.

What arrives is a single button handheld with a cream case and a grey button, measuring roughly 6.5 cm long, 3.55 cm wide and 1.65 cm deep. It controls one door or one gate. An LED on the front confirms the button has been pressed and gives you the first thing to check if the door does not respond, since a dead LED usually means a flat battery rather than a fault in the opener. It is slim enough for a pocket or a bag and suits a car visor clip.

The 23A 12V battery is fitted before the remote leaves us. A 23A is a small cylindrical cell, not a flat coin cell, and it is the same battery the original 27 MHz handsets used. Opening the battery compartment on this model requires a tool rather than a thumbnail, which is worth knowing before you go looking for a catch that is not there. Keep spare cells away from children and dispose of used ones through a battery recycling point rather than in household waste.

One honest caveat, and we would rather you heard it here than after the parcel arrives. An aftermarket remote of this type can have shorter range than the genuine ATA unit it replaces. For most homes that difference never shows up, because the distance from the driveway to the motor is short. If you are used to opening the door from the end of a long driveway or from inside a basement car park, the genuine remote is the safer choice and we are happy to quote one instead. Range that is poor with any new remote usually points at the opener's receiver or its aerial rather than the handset, and that is a service call rather than a parts problem.

This is a compatible part, not an ATA product. It is built to send the same code to your opener as the original did, and it is not manufactured, authorised, endorsed or approved by Automatic Technology Australia. The only remotes we describe as genuine are the ones that actually come from the brand on the box, and those are listed separately.

The 27.145 MHz generation is now decades old, and there is a point at which replacing handsets stops being worth it. If your opener is dropping out, running slowly, reversing without an obstruction or refusing to respond from a distance that used to work, the remote may not be the problem. Allgate technicians service every major gate and door brand across Sydney, and our service vehicles carry motors, receivers, remotes, circuit boards, rollers and springs, so most faults are diagnosed and repaired on the first visit. Where an older system is genuinely at the end of its life we will tell you that plainly and quote the upgrade rather than sell you another handset for a motor that will not last the year.

Most customers program this remote themselves in a few minutes using the instructions supplied. If you would rather not climb up to the motor, or the opener sits above a stairwell or in a shared car park where getting to it is awkward, an Allgate technician can code and test it on site anywhere in Sydney. We cover the CBD and the inner suburbs, the Eastern Suburbs and the Northern Beaches, the North Shore and the Hills District, the Inner West, the St George and Sutherland areas, Greater Western Sydney and the Macarthur region.

One last suggestion from experience. If this remote is the only one in the house, order a second while you are here and code them in the same sitting. Two remotes set up in one five minute job is an easier afternoon than one remote and a ladder again in eighteen months.

Product details

Brand

ATA

Type

Compatible aftermarket part

Category

Remote controls

Battery

23A 12V

Allgate stock code

AG_RPC202-001

Delivery, returns and fitting

Shipping costs and delivery times are shown beside the Add to cart button above. Unused parts can be returned by post within 30 days of purchase for a full refund, with return postage paid by you. Your rights under the Australian Consumer Law apply on top of that, so if the part you receive turns out not to suit your opener, call us before you program it and we will work out what does. Our full terms of sale are set out on the Allgate terms and conditions page.

Most customers fit and code a new part themselves in a few minutes using the instructions supplied. If you would rather have it done, an Allgate technician can program and test it on site anywhere we work, which is every suburb listed on the Sydney service areas page.

Not sure the ATA TX Compatible Remote is the right part?

Buying the wrong remote is the most common mistake we see, and it is almost always avoidable with one photograph. Send a clear shot of the front and the back of your existing unit, plus one of the motor if you can reach it safely, to service@allgate.com.au and our team will tell you exactly which part suits your opener. If you would rather talk it through, our domestic line is 1300 736 683, Monday to Friday 8am to 4pm. Commercial and strata customers can reach a technician on 1300 655 600 at any hour, on any day.

You can also search the catalogue by the model number printed on your existing handset, which is the fastest way to find the match yourself.
