ATA PTX-5v1 Compatible Remote

About the ATA PTX-5v1 Compatible Remote

It covers the DCB-05 Dual Gate Controller, the GDO-6v3 and GDO-6v4 EasyRoller, the GDO-7v2 and GDO-7v3 SecuraLift, the GDO-8v3 Shed Master, the GDO-9 in Dynamo, Enduro and Ero form, the GDO-9v2 as SecuraLift and Enduro, the GDO-9v3 as Dominator and Dynamo, the GDO-10v1 Toro, the GDO-11v1 Securalift Ero, the NES-24v1 NeoSlider, the RD-40V1 and the SGO-1 Elite.

Two things are ruled out. The blue case PTX-4 on 433 MHz is a different generation despite sharing the frequency, and so is any older ATA motor still running SecuraCode or the 27 MHz TX system, unless a TriCode receiver card has been fitted to bring it across.

TrioCode is the reason this handset is worth more than a cheap radio, and it works by never using the same code twice. Remote and receiver both step to a fresh code on every press, chosen from more than 4.29 billion possibilities, and a code that has been used is refused ever afterwards. Someone parked outside with a scanner can capture your signal cleanly and still have nothing worth replaying. It is the same principle ATA use across the range and it is a genuine step up from the fixed code equipment still running on plenty of older doors.

This handset is produced in more than one style. Allgate dispatches whichever is on the shelf, which is nearly always the one photographed, there is nothing to choose at checkout, and none of them works differently from another. Ring 1300 736 683 first if the appearance matters to you.

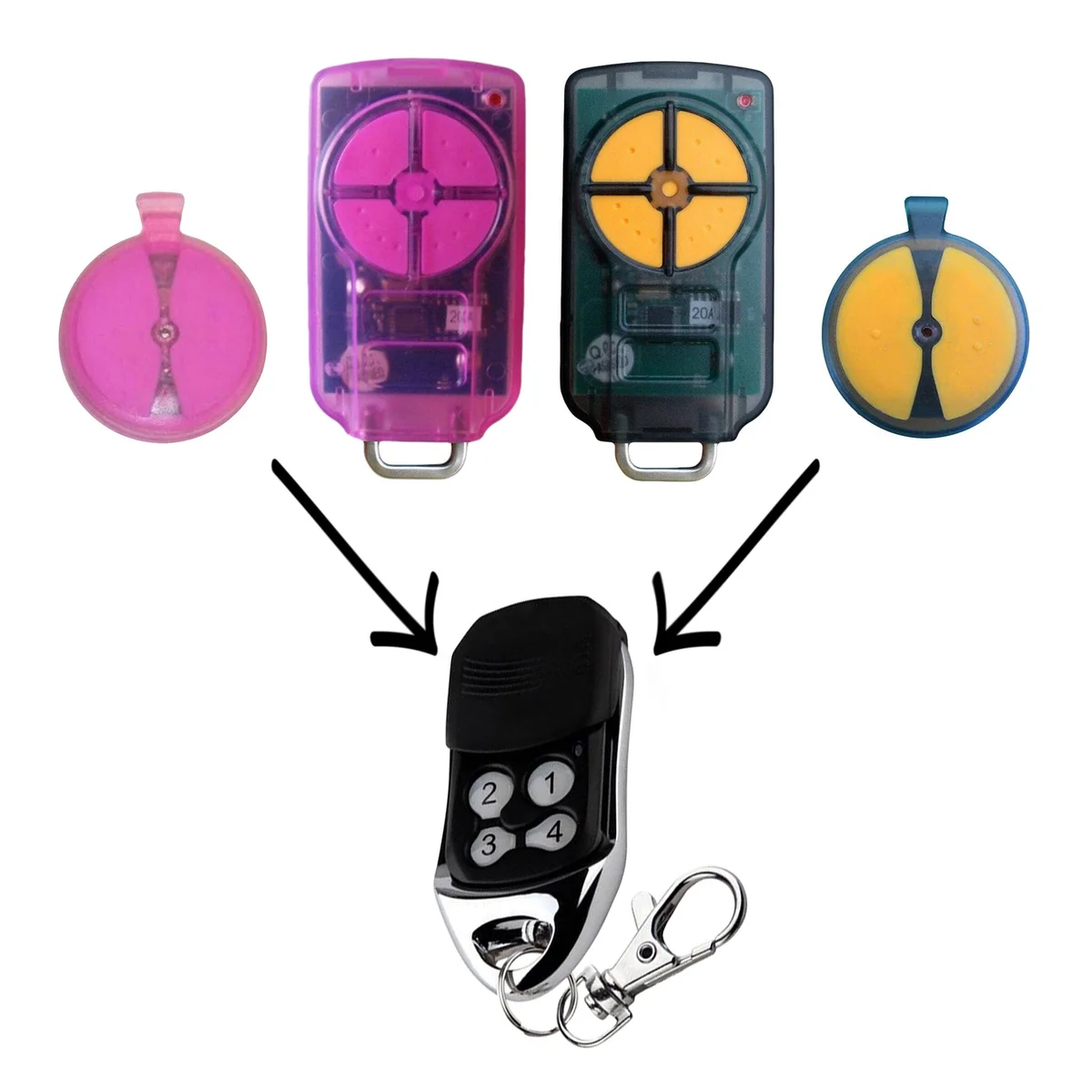

The supplier asks you to confirm two things, and on a range this size both are worth doing: your existing remote should be the one in the main image, and your motor should be named above.

It is small at 2.2 cm wide, 6 cm long and 1 cm deep, runs four independently coded doors, and takes a CR2032 coin cell which arrives fitted behind a cover that needs a tool. Third party testing against AS62368.1 is published for it.

This is an aftermarket remote. It is not manufactured, authorised, endorsed or approved by Automatic Technology Australia.

If you are on an older SecuraCode motor and reading this page because somebody told you a PTX-5 is the current remote, the receiver card is the conversation worth having. Fitting one moves the motor onto TrioCode and onto this handset, and an Allgate technician can tell you in a phone call whether your opener is a candidate.

Product details

Brand

ATA

Type

Compatible aftermarket part

Category

Remote controls

Battery

CR2032 3V

Allgate stock code

AG_RPC402

Warning: contains a coin battery

Coin batteries are dangerous. A swallowed or inserted coin battery can cause serious injury or death within two hours.

This product is supplied with a CR2032 3V coin battery.

• Keep new and used batteries out of reach of children at all times
• Do not use this product if the battery compartment does not close securely. Stop using it and keep it away from children
• Dispose of used batteries immediately and safely. A flat battery is still dangerous
• Never swallow a battery or place one inside any part of the body. It can cause severe internal chemical burns

If you think a battery has been swallowed or placed inside any part of the body, seek immediate medical attention. Call the Poisons Information Centre on 13 11 26 or go straight to your nearest hospital emergency department.

Delivery, returns and fitting

Shipping costs and delivery times are shown beside the Add to cart button above. Unused parts can be returned by post within 30 days of purchase for a full refund, with return postage paid by you. Your rights under the Australian Consumer Law apply on top of that, so if the part you receive turns out not to suit your opener, call us before you program it and we will work out what does. Our full terms of sale are set out on the Allgate terms and conditions page.

Most customers fit and code a new part themselves in a few minutes using the instructions supplied. If you would rather have it done, an Allgate technician can program and test it on site anywhere we work, which is every suburb listed on the Sydney service areas page.

Not sure the ATA PTX-5v1 Compatible Remote is the right part?

Buying the wrong remote is the most common mistake we see, and it is almost always avoidable with one photograph. Send a clear shot of the front and the back of your existing unit, plus one of the motor if you can reach it safely, to service@allgate.com.au and our team will tell you exactly which part suits your opener. If you would rather talk it through, our domestic line is 1300 736 683, Monday to Friday 8am to 4pm. Commercial and strata customers can reach a technician on 1300 655 600 at any hour, on any day.

You can also search the catalogue by the model number printed on your existing handset, which is the fastest way to find the match yourself.
