ATA KPX-7v2 Genuine Keypad

About the ATA KPX-7v2 Genuine Keypad

The motors it works with are the NeoSlider range in NES-24v1, NES-500 and NES-800 form, the Elite SGO-1, the Toro GDO-10v1, the GDO-11v1 and GDO-11v3, the GDO-9 Dynamo along with the GDO-9v2 and the GDO-9v3, the Shed Master GDO-8v3 ASM, both SecuraLift versions of the GDO-7, the EasyRoller in GDO-6, GDO-6v3 and GDO-6v4 form, and the DCB-05 Dual Gate Controller. Ruled out are the blue case PTX-4 on 433 MHz, and any ATA motor left on the SecuraCode or 27 MHz TX systems that has never had a TrioCode receiver card added.

Controlling four doors from one keypad is the feature that sets this apart from a simple single door unit. A property with a garage, a pedestrian gate, a driveway gate and a shed can run all four from the same pad, and a small strata block can give residents keypad access to a car park without issuing a remote to every unit. Each channel is coded separately, so you can start with one and add the others later.

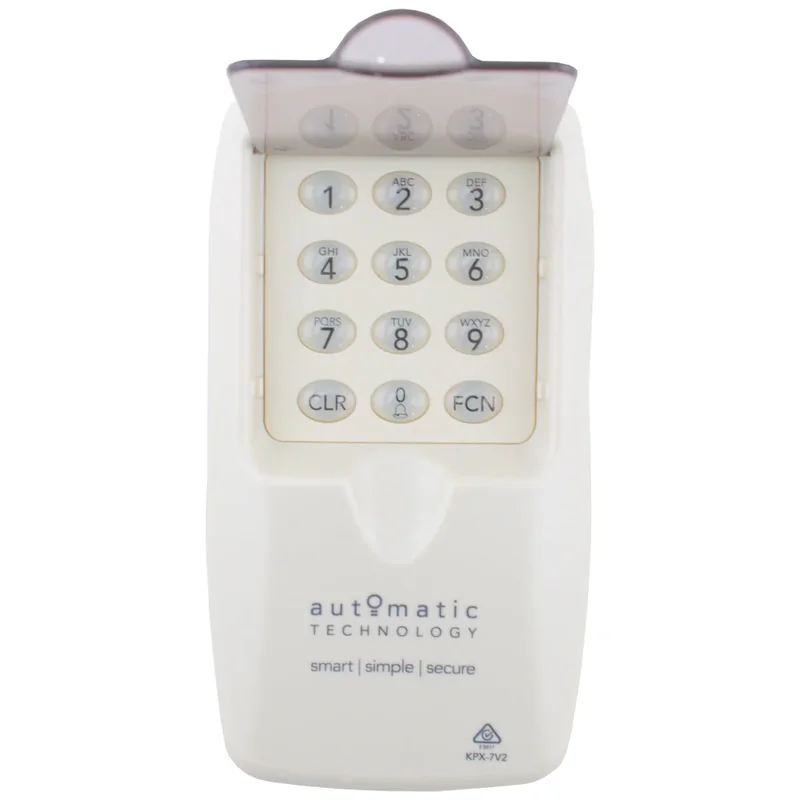

The keypad is wireless and talks to the opener on 433 MHz, so there is no cabling to run back to the motor and it can go wherever it is most useful: beside the front door, on the gate post, or at the car park entry. Two screws are supplied for mounting. The case is cream with clear buttons and a green indicator light, and it measures roughly 7.4 cm wide, 13.64 cm long and 2.5 cm deep.

Power is a 9V battery, fitted before dispatch. That is the rectangular block type rather than a coin cell. The compartment needs a tool to open. On an outdoor keypad the battery is the single most common cause of a unit that has stopped responding, so it is always worth changing before assuming a fault.

Programming is learn to receiver. You put the motor into learn mode, set your PIN, and the receiver stores it, with the rolling TrioCode encryption generating a fresh code on every use. Instructions are included.

Allgate supplies, installs and services genuine ATA equipment across every Sydney suburb, and our service vehicles carry the common parts so most work is completed on the first visit. Where a keypad is going onto a shared driveway rather than a single house, it is worth deciding who holds the code and how often it changes before the unit is mounted.

For a strata car park or a commercial entry, ring 1300 655 600 at any hour and ask for a technician. Managing PIN access across a building is a different conversation from fitting a keypad to a house, and it is worth having before the unit goes on the wall.

Product details

Brand

ATA

Type

Genuine part

Category

Keypads

Battery

9V

Allgate stock code

AG_ATAKPX7

Delivery, returns and fitting

Shipping costs and delivery times are shown beside the Add to cart button above. Unused parts can be returned by post within 30 days of purchase for a full refund, with return postage paid by you. Your rights under the Australian Consumer Law apply on top of that, so if the part you receive turns out not to suit your opener, call us before you program it and we will work out what does. Our full terms of sale are set out on the Allgate terms and conditions page.

Most customers fit and code a new part themselves in a few minutes using the instructions supplied. If you would rather have it done, an Allgate technician can program and test it on site anywhere we work, which is every suburb listed on the Sydney service areas page.

Not sure the ATA KPX-7v2 Genuine Keypad is the right part?

Buying the wrong remote is the most common mistake we see, and it is almost always avoidable with one photograph. Send a clear shot of the front and the back of your existing unit, plus one of the motor if you can reach it safely, to service@allgate.com.au and our team will tell you exactly which part suits your opener. If you would rather talk it through, our domestic line is 1300 736 683, Monday to Friday 8am to 4pm. Commercial and strata customers can reach a technician on 1300 655 600 at any hour, on any day.

You can also search the catalogue by the model number printed on your existing handset, which is the fastest way to find the match yourself.
